Triple Loks

Australian made galvabond fixings providing onto three separate surfaces for maximum strength jointing


Triple Grips are typically used for the following applications:

Connecting of Rafters to Wall Plate

Connecting of Roof Trusses to Wall Plate

Jack flyovers to truncated truss

Connect Joist to Bearer


A minimum of 10/30mm x 2.8Ø Dunnings’ nails must be used to fix each Triple Grip for full tabulated values.


Product Specification

Product Code

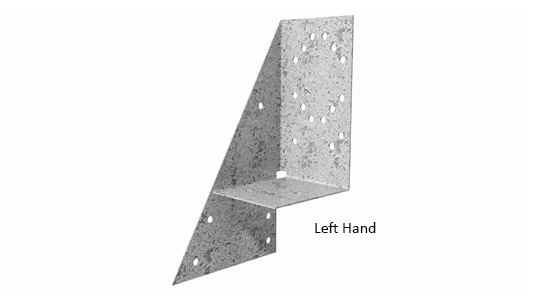

Left Hand - 1mm - Galvanised BTRL1L
Right Hand - 1mm - Galvanised BTRL1R

Material Specification

Thickness: 1.0mm
Material: G300-Z275


BN 30 x 2.8mm Galvanised Timber Connector nails

Log in to view design loads
