Bond Beam Plates
Heavy duty hot dip galvanised brackets used for heavy duty tie downs
![](/images/products/builders_plates/bond_beam_plates/D-DS-60-01-01.jpg)
Applications
![](/images/products/builders_plates/bond_beam_plates/D-DS-60-01-02.jpg)

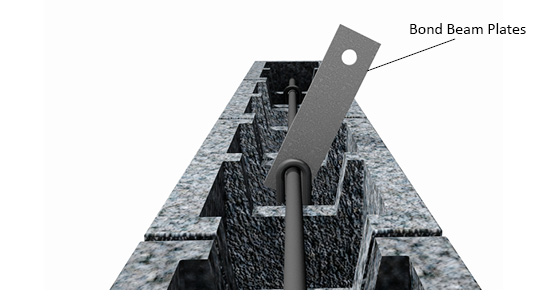

1. Feed horizontal steel reinforcement bar through the hole on the side of Bond Beam Plate that is to be cast in.
![](/images/products/builders_plates/bond_beam_plates/D-DS-60-01-03.jpg)

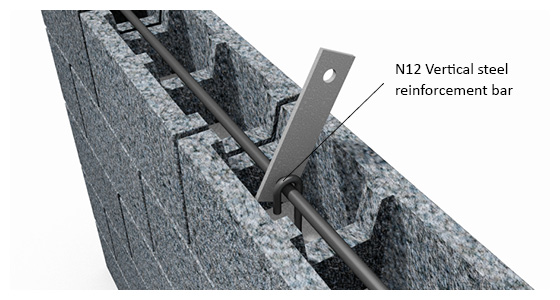

2. Fix N12 vertical reinforcement bars close as possible to the Bond Beam Plates and anchor them to foundation. Bond Beam Plates to be positioned where truss is to be supported.
![](/images/products/builders_plates/bond_beam_plates/D-DS-60-01-04.jpg)

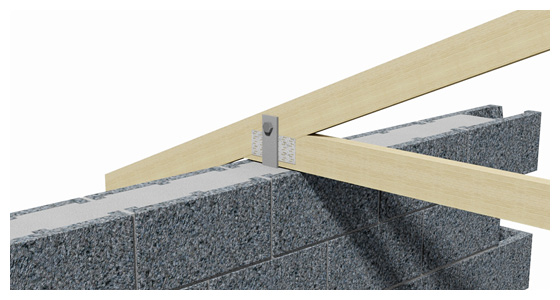

3. Fix trusses to Bond Beam Plates with M12 or M16 bolts through truss top chords. Bolt must be located above the nailplate at the heel.
![](/images/products/builders_plates/bond_beam_plates/D-DS-60-01-05.jpg)

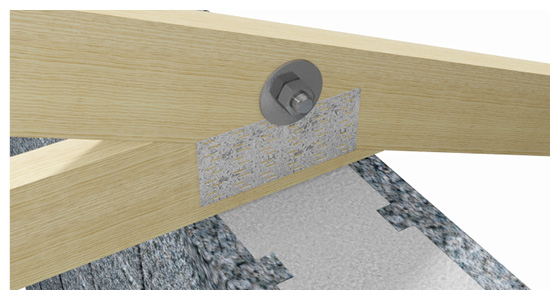

4. Use 3.0mm thick Ø55mm round washers or 50mm square washers to timber side, as per AS1720.1-2010
Product Specification |
Product Code |
---|---|
200 x 50 x 6mm with 14 & 17mm Holes - Hot Dipped Galvanised | BBB2001417G |
200 x 50 x 6mm with 14 & 19mm Holes - Hot Dipped Galvanised | BBB2001419G |
200 x 50 x 6mm with 17 & 17mm Holes - Hot Dipped Galvanised | BBB2001717G |
200 x 50 x 6mm with 17 & 19mm Holes - Hot Dipped Galvanised | BBB2001719G |
250 x 50 x 6mm with 14 & 17mm Holes - Hot Dipped Galvanised | BBB2501417G |
250 x 50 x 6mm with 17 & 17mm Holes - Hot Dipped Galvanised | BBB2501717G |
250 x 50 x 6mm with 17 & 19mm Holes - Hot Dipped Galvanised | BBB2501719G |
Material Specification | |
---|---|
Thickness: | 6.0mm |
Material: | Hot dipped galvanised corrosion protection |
