Hoop Iron Tensioners
Heavy duty hoop iron tensioners to ensure that bracing can be tightened to the required standards without failing
![](/images/products/builders/hoop_iron/D-DS-11-02-02.jpg)
Applications
Two individually cut pieces of Hoop Iron Bracing are required to brace a timber framed wall section. These pieces should overlap to form an ‘X’.
- Secure first end of one piece of bracing into position using 30 x 2.8mm Dunnings’ nails.
- Stretch the Hoop Iron Bracing over the entire panel to be braced, ensuring the brace is taut.
- Secure the second end while maintaining tension on the brace.
- Repeat this procedure for the second piece of Hoop Iron Bracing, ensuring an ‘X’ is formed.
- Secure the Hoop Iron Tensioner in each length of Hoop Iron Bracing to remove any remaining slack.
Product Specification |
Product Code |
---|---|

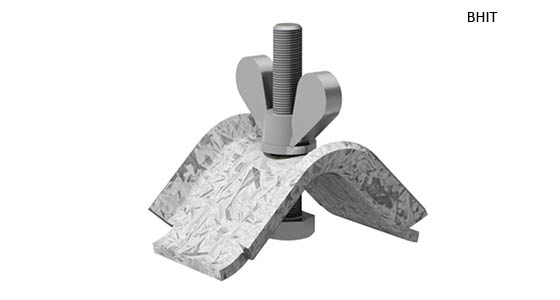

Heavy Duty Tensioner With T Nuts and Bolts - Galvanised - 10 bags of 10 / 100ea Per Carton | BHIT |
Hoop Iron Tensioner With Hex Head - Galvanised - 10 bags of 10 / 100ea Per Carton | BHITHH |
![](/images/products/builders/hoop_iron/D-DS-11-02-01-Ten.jpg)
