Quick Brace

A full range of Dunnings manufactured bracing used to provide bracing strength during either wall or roof construction


Applications

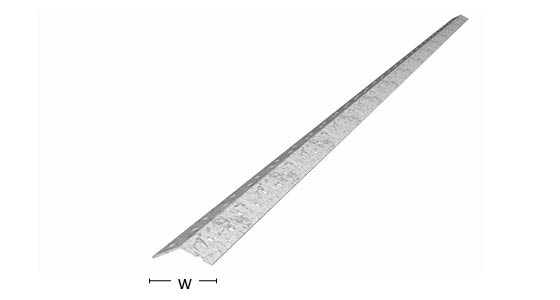

Roof bracing is a pre-punched ‘V’ shaped component that fixes in an ‘X’ or ‘V’ pattern to the top of the top chord to firmly brace roof trusses to the building frame.

Roof bracing must be applied in opposing directions, with the number, location and tie-down of bracing units to be determined as described in the relevant Standard.

Roof trusses are braced using Roof Bracing to prevent buckling or rotation of trusses when affected by winds or heavy loads. Both the span of the roof and the shape of the roof determine the layout of the Roof Bracing.

Heel End Fixing Detail

End Fixing Detail


Product Specification

Product Code

Quick Brace Galvanised 36 x 1mm x 4m Length BQB1X4
Quick Brace Galvanised 36 x 1mm x 6m Length BQB1X6

Material Specification


Thickness: 1.0mm
Material: G300-Z275

Nails


BN 30 x 2.8mm Galvanised Timber Connector nails
