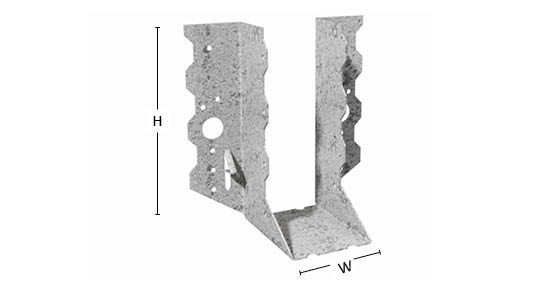

Joist Supports / Framing Brackets

Australian made galvabond based preformed brackets for connecting joists to bearers


Applications

Connection of Two timbers

Use 4/30mm x 2.8Ø Dunnings’ nails through each wing to the supporting member each side.

Use 3/30mm x 2.8Ø Dunnings’ nails through each side into carried member.


Product Specification

Product Code

90 x 35 x 1mm Galvanised BJS90X35
90 x 38 x 1mm Galvanised BJS90X38
90 x 40 x 1mm Galvanised BJS90X40
90 x 45 x 1mm Galvanised BJS90X45
90 x 50 x 1mm Galvanised BJS90X50
120 x 35 x 1mm Galvanised BJS120X35
120 x 38 x 1mm Galvanised BJS120X38
120 x 40 x 1mm Galvanised BJS120X40
120 x 45 x 1mm Galvanised BJS120X45
120 x 50 x 1mm Galvanised BJS120X50
120 x 60 x 1mm Galvanised BJS120X60
140 x 35 x 1mm Galvanised BJS140X35
140 x 38 x 1mm Galvanised BJS140X38
140 x 40 x 1mm Galvanised BJS140X40
140 x 45 x 1mm Galvanised BJS140X45
140 x 50 x 1mm Galvanised BJS140X50
180 x 35 x 1mm Galvanised BJS180X35
180 x 38 x 1mm Galvanised BJS180X38
180 x 40 x 1mm Galvanised BJS180X40
180 x 45 x 1mm Galvanised BJS180X45
180 x 50 x 1mm Galvanised BJS180X50

Material Specification


Thickness: 1.0mm
Material: G300-Z275

Nails


BN 30 x 2.8mm Galvanised Timber Connector nails



Log in to view design loads
