Large Joist Support


Applications

The Dunnings Large Joist Support is designed to primarily suit Floor Joists and also to support large size timber beams.

The application of Dunnings Large Joist Support is simple.

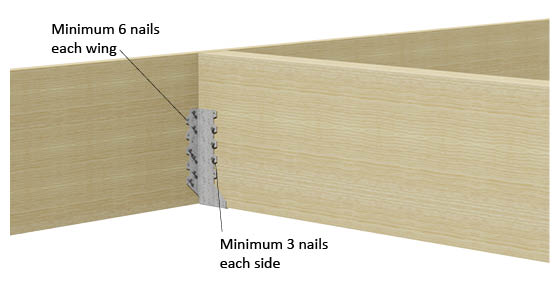

Position the Floor Joist hard against the supporting member and secure the Large Joist Support to the member using a minimum of 6/30mm x 3.15Ø Dunnings nails in each wing and 3/30mm x 3.15Ø Dunnings nails into the supported member.

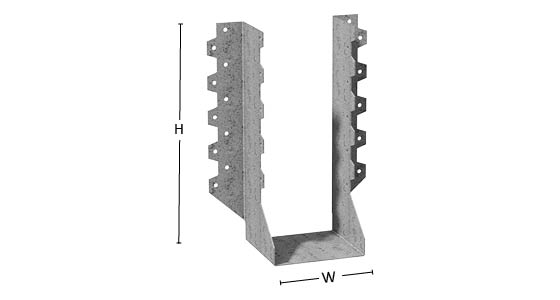

Product Specification

Product Code

162 x 62 x 1mm - Galvanised BLJS170X60
161 x 65 x 1mm - Galvanised BLJS170X63
199 x 65 x 1mm - Galvanised BLJS200X63
196 x 71 x 1mm - Galvanised BLJS200X70
186 x 91 x 1mm - Galvanised BLJS200X90
212 x 39 x 1mm - Galvanised BLJS220X38
208 x 46 x 1mm - Galvanised BLJS220X45
206 x 51 x 1mm - Galvanised BLJS220X50
200 x 62 x 1mm - Galvanised BLJS220X60
238 x 46 x 1mm - Galvanised BLJS240X45
229 x 65 x 1mm - Galvanised BLJS240X63
283 x 46 x 1mm - Galvanised BLJS290X45
274 x 65 x 1mm - Galvanised BLJS300X63
358 x 46 x 1mm - Galvanised BLJS360X45
349 x 65 x 1mm - Galvanised BLJS360X63

Material Specification


Thickness: 1.0mm
Material: G300-Z275

Nails


BNTC 33 x 3.15mm Galvanised Timber Connector nails



Log in to view design loads
