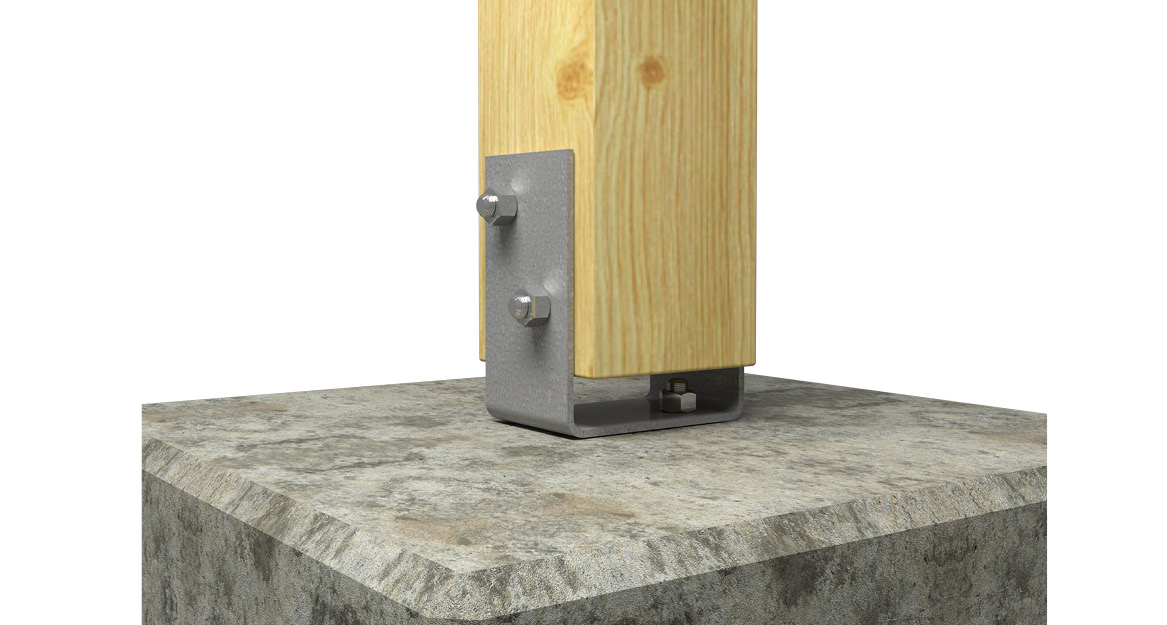

Type C - Full Stirrup Bolt Down

Standard hot dip galvanised cup style post shoes


Applications - M10

  1. Fix two anchors through the base plate to concrete.
  2. Ensure anchor fixing and footing detail are adequate enough to resist the wind load upward and dead plus live load downward.
  3. Fix timber post to steel post anchor with 2/M10 bolts.

Termite Protection
For termite management systems refer to AS3660.1.


Applications - M12

  1. Fix two anchors through the base plate to concrete.
  2. Ensure anchor fixing and footing detail are adequate enough to resist the wind load upward and dead plus live load downward.
  3. Fix timber post to steel post anchor with 2/M12 bolts.

Termite Protection
For termite management systems refer to AS3660.1.


Applications - M16

  1. Fix two anchors through the base plate to concrete.
  2. Ensure anchor fixing and footing detail are adequate enough to resist the wind load upward and dead plus live load downward.
  3. Fix timber post to steel post anchor with 2/M16 bolts.

Termite Protection
For termite management systems refer to AS3660.1.


Product Specification - M10

Product Code

75 Post x 4mm, height = 105mm - Hot Dipped Galvanised BPAC75
90 Post x 4mm, height = 100mm - Hot Dipped Galvanised BPAC90HDG
100 Post x 4mm, height = 93mm - Hot Dipped Galvanised BPAC100HDG
115 Post x 4mm, height = 120mm - Hot Dipped Galvanised BPAC115HDG
125 Post x 4mm, height = 115mm - Hot Dipped Galvanised BPAC125HDG

Material Specification


Thickness: 4.0mm
Material: Hot dipped galvanised corrosion protection


Product Specification - M12

Product Code

75 Post x 105mm x 4mm - Hot Dipped Galvanised BPA12C75HDGNEW
90 Post x 4mm, height = 100mm - Hot Dipped Galvanised BPA12C90HDG
100 Post x 4mm, height = 93mm - Hot Dipped Galvanised BPA12C100HDG
125 Post x 4mm, height = 115mm - Hot Dipped Galvanised BPA12C125HDG

Material Specification


Thickness: 4.0mm
Material: Hot dipped galvanised corrosion protection

Product Specification - M16

Product Code

140 Post x 182mm x 5mm - Hot Dipped Galvanised BPA12C140HNEW

Material Specification


Thickness: 5.0mm
Material: Hot dipped galvanised corrosion protection
