Joist Brackets - Marine Grade Stainless Steel

Australian made High corrosion resistant stainless steel based preformed brackets for connecting joists to bearers


Applications

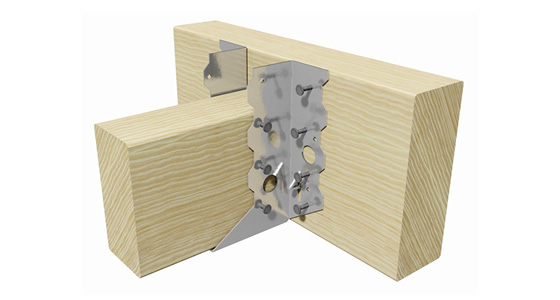

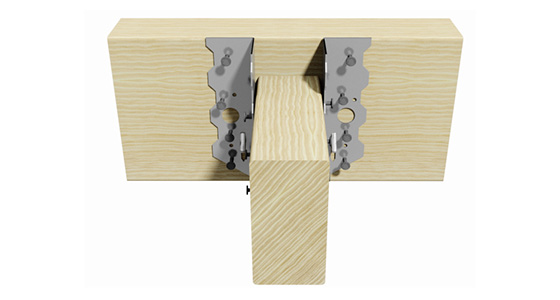

Connection of Two timbers

Use 4/30mm x 2.8Ø Dunnings’ stainless nails through each wing to the supporting member each side.

Use 3/30mm x 2.8Ø Dunnings’ stainless nails through each side into carried member.

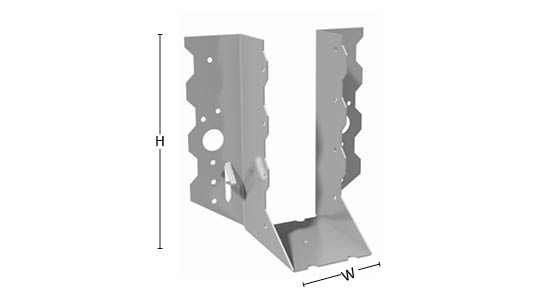

Product Specification

Product Code

90 x 35 x nom 1mm SBJS90X35
90 x 40 x nom 1mm SBJS90X40
90 x 45 x nom 1mm SBJS90X45
90 x 50 x nom 1mm SBJS90X50
120 x 35 x nom 1mm SBJS120X35
120 x 40 x nom 1mm SBJS120X40
120 x 45 x nom 1mm SBJS120X45
120 x 50 x nom 1mm SBJS120X50

Material Specification


Thickness: 0.9mm
Material: Minimum Grade 316 Stainless Steel

Nails


SBN 30 x 2.8mm Stainless Timber Connector nails



Log in to view design loads
