Type T - Bolt On - Heavy Duty

Surface mount hot dip galvanised post shoes with a centre blade fixing and surface mount


Applications - M16

  1. Fix anchor through the base plate to concrete.
  2. Ensure anchor fixing and footing detail are adequate enough to resist the wind load upward and dead plus live load downward.
  3. Fix timber post to steel post anchor with 2/M16 bolts.

Termite Protection
For termite management systems refer to AS3660.1.

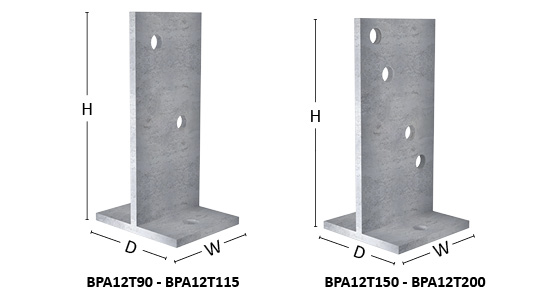

Product Specification (H x D x W)

Product Code

240 T Blade x 8mm - 240 x 140 x 85mm Base -
Hot Dipped Galvanised -
2 x holes to suit M16 holes on one diagonal and
2 x holes to suit M12 on the other diagonal on the blade and
2 x holes to suit M16 on the base plate

BPA12T90

250 T Blade x 10mm - 250 x 140 x 115mm Base -
Hot Dipped Galvanised -
2 x holes to suit M16 holes on one diagonal and
2 x holes to suit M12 on the other diagonal on the blade and
2 x holes to suit M16 on the base plate

BPA12T115

250 T Blade x 10mm - 250 x 180 x 130mm Base -
Hot Dipped Galvanised -
4 x holes to suit M16 holes on the blade and
2 x holes to suit M16 on the base plate

BPA12T150

300 T Blade x 10mm - 300 x 200 x 180mm Base -
Hot Dipped Galvanised -
4 x holes to suit M16 holes on the blade and
2 x holes to suit M16 on the base plate

BPA12T200

Material Specification


Thickness: 8.0mm - 10.0mm
Material: Hot dipped galvanised corrosion protection



Log in to view design loads
