Wall Bracing

A full range of Australian made bracing used to provide bracing strength during either wall or roof construction

  1. Position the Wall Bracing as specified by the frame drawings or code requirement.

  2. Mark the saw cut position using the Wall Bracing edge as guide, making sure that the angle between top plate and Wall Bracing is approximately 45° (but no less than 30° and no greater than 60°).

  3. Cut the marked studs and plates to a depth of 18mm (no deeper than 20mm).

  1. Place the unpunched leg of the Wall Bracing into the saw cut, with the punched leg facing towards the bottom plate.

  2. Trim the Wall Bracing to the required length.

  3. Fix the Wall Bracing to each stud and each plate using 2/30 x 2.8mm Dunnings’ nails.

1.5kN/m Bracing Capacity as per AS1684-2010 Residential Timber-Framed Construction, Table 8.18(c)


The maximum depth of a notch or saw-cut shall NOT exceed 20mm.


Specification

Product Code

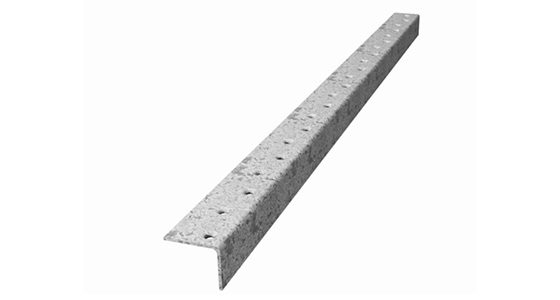

DES Wall Brace Galvanised
20 x 18 x 1.2mm x 3.6m Length

BDB1.2X3.6

DES Wall Brace Galvanised
20 x 18 x 1.2mm x 4.2m Length

BDB1.2X4.2

DES Wall Brace Galvanised
20 x 18 x 1.2mm x 4.8m Length

BDB1.2X4.8NEW


Thickness:

1.2mm

Material:

G300-Z275

BN 30 x 2.8mm Galvanised Timber Connector nails
