Hitch

Australian made galvabond brackets used to fasten internal walls to roof trusses

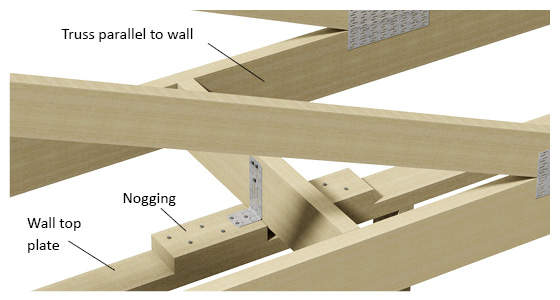

Wall is parallel to truss

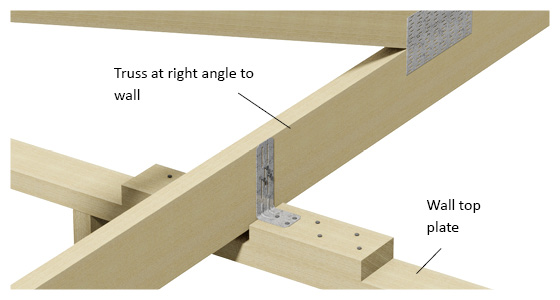

Wall is perpendicular to truss


Wall is parallel to truss


  1. Fix to the wall top plate with 3/30mm x 2.8Ø Dunnings nails.

  2. Fix to truss bottom chord or nogging with 3/30mm x 2.8Ø Dunnings nails.

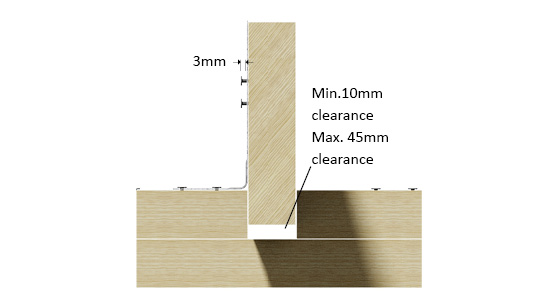

    Allow 3mm gap between nail head and bracket.

Wall is perpendicular to truss


Note:

  • Nails to the bottom chord of a roof truss must be located at the top of the slots to allow downward movement of the chord under load.

  • Do not fix too tightly or deform the Internal Wall Bracket in the process of nailing.

  • To be installed at 1800 centres maximum on internal walls.

  • Fixing of block pieces or nogging to wall top plate in accordance with AS1684 series


Specification

Product Code

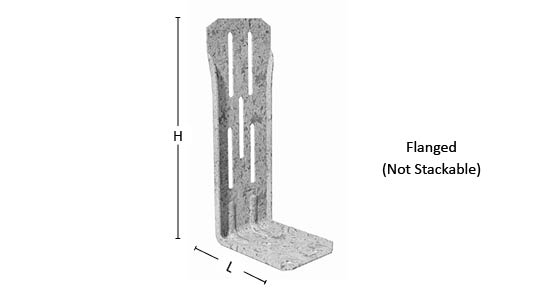

Hitch - Flanged (Not Stackable)
122 x 55 x 40 x 1mm Galvanised (Has flange for extra stiffness - suits nails)

BDH

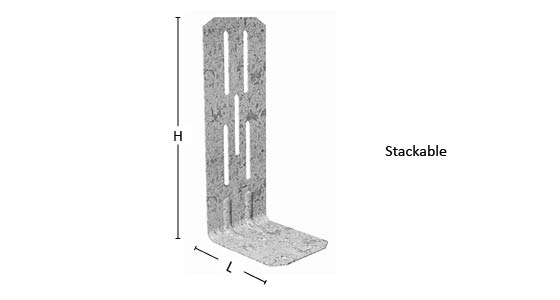

Hitch - Stackable
122 x 55 x 40 x 1mm Galvanised (no flange - suits nails)

BDHS

Hitch - Stackable
120 x 50 x 40 x 1mm Galvanised (no flange - suits 6mm screws)

BSFDHS


Thickness:

1.0mm

Material:

G300-Z275


BN 30 x 2.8mm Galvanised Timber Connector nails
