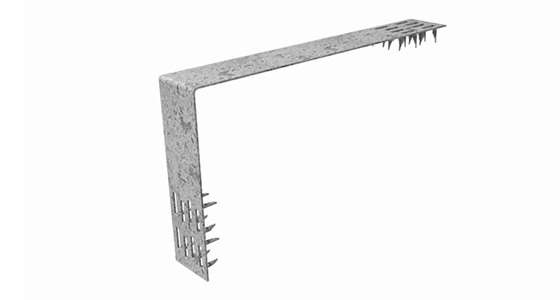

Joist Strap / Stud Tie
Australian made galvabond fixing to give a high strength fastening of top and bottom wall plates to studs
Step 1
Position the shorter leg of the Stud Tie on the external side of the wall plate and hold firmly.
Step 2
Hammer the preformed teeth into the stud and then bend the longer leg around the plate. Once a tight bend is achieved, hammer the remaining teeth into the other side of the stud.
Specification | Product Code |
|---|---|
150 x 250 x 28 x 1mm - Galvanised | BSJT |
130 x 90 x 130 x 1mm - 28mm wide - Galvanised | BSJT90 |
240 x 60 x 1mm - 30mm wide Left Side - Galvanised | BSTSL |
240 x 60 x 1mm - 30mm wide Left Side - Galvanised | BSTSR |
Thickness: | 1.0mm |
Material: | G300-Z275 |
