Nail on Plates
Australian made general purpose galvabond plate for joining timbers with a near limitless number of nailing combinations
Nail on Plates are ideal for home construction, extensions, garages and agricultural constructions.

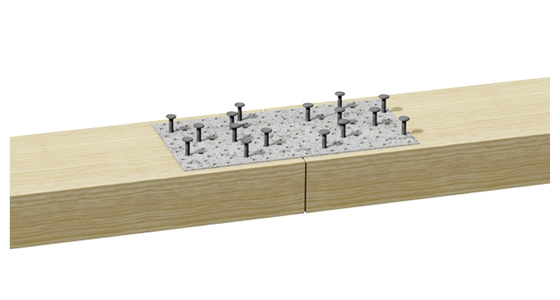

Strength is obtained by nailing 30mm x 2.8Ø Dunnings’ nails through the holes.
Specification | Product Code |
|---|---|
150 x 75 x 1mm - Galvanised | BNP1501 |
200 x 75 x 1mm - Galvanised | BNP2001 |
300 x 75 x 1mm - Galvanised | BNP3001 |
375 x 75 x 1mm - Galvanised | BNP3751 |

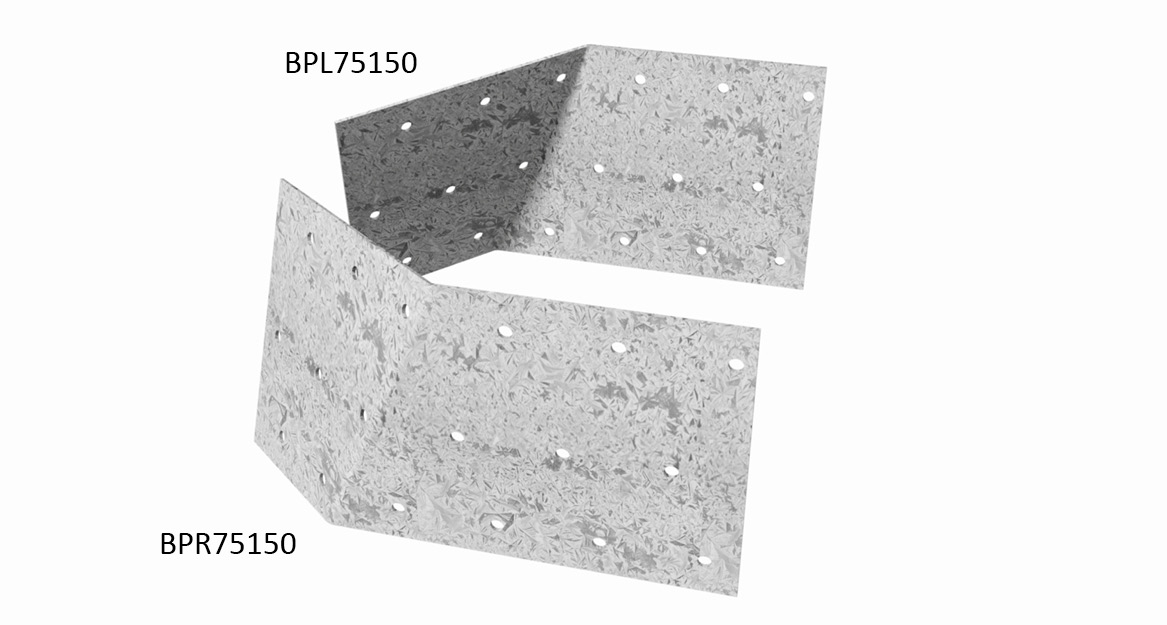

150 x 75 x 1mm - Skewed Left - Galvanised | BPL75150 |
150 x 75 x 1mm - Skewed Right - Galvanised | BPR75150 |
150 x 75 x 1mm - Straight - Galvanised | BPS75150 |
Thickness: | 1.0mm |
Material: | G300-Z275 |
BN 30mm x 2.8Ø Galvanised Timber Connector nails |
