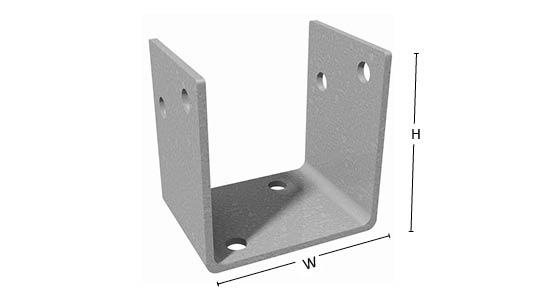

Type C - Full Stirrup Bolt Down
Standard hot dip galvanised cup style post shoes
- Applications - M10
- Applications - M12
- Applications - M16
- Product Specification - M10
- Material Specification
- Product Specification - M12
- Material Specification
- Product Specification - M16
- Material Specification
Fix two anchors through the base plate to concrete.
Ensure anchor fixing and footing detail are adequate enough to resist the wind load upward and dead plus live load downward.
Fix timber post to steel post anchor with 2/M10 bolts.
Termite Protection
For termite management systems refer to AS3660.1.
Fix two anchors through the base plate to concrete.
Ensure anchor fixing and footing detail are adequate enough to resist the wind load upward and dead plus live load downward.
Fix timber post to steel post anchor with 2/M12 bolts.
Termite Protection
For termite management systems refer to AS3660.1.
Fix two anchors through the base plate to concrete.
Ensure anchor fixing and footing detail are adequate enough to resist the wind load upward and dead plus live load downward.
Fix timber post to steel post anchor with 2/M16 bolts.
Termite Protection
For termite management systems refer to AS3660.1.
Product Specification - M10 | Product Code |
|---|---|
75 Post x 4mm, height = 105mm - Hot Dipped Galvanised | BPAC75 |
90 Post x 4mm, height = 100mm - Hot Dipped Galvanised | BPAC90HDG |
100 Post x 4mm, height = 93mm - Hot Dipped Galvanised | BPAC100HDG |
115 Post x 4mm, height = 120mm - Hot Dipped Galvanised | BPAC115HDG |
125 Post x 4mm, height = 115mm - Hot Dipped Galvanised | BPAC125HDG |
Material Specification |
|
|---|---|
Thickness: | 4.0mm |
Material: | Hot dipped galvanised corrosion protection |
Product Specification - M12 | Product Code |
|---|---|
75 Post x 105mm x 4mm - Hot Dipped Galvanised | BPA12C75HDGNEW |
90 Post x 4mm, height = 100mm - Hot Dipped Galvanised | BPA12C90HDG |
100 Post x 4mm, height = 93mm - Hot Dipped Galvanised | BPA12C100HDG |
125 Post x 4mm, height = 115mm - Hot Dipped Galvanised | BPA12C125HDG |
Material Specification |
|
|---|---|
Thickness: | 4.0mm |
Material: | Hot dipped galvanised corrosion protection |
Product Specification - M16 | Product Code |
|---|---|
140 Post x 182mm x 5mm - Hot Dipped Galvanised | BPA12C140HNEW |
Material Specification |
|
|---|---|
Thickness: | 5.0mm |
Material: | Hot dipped galvanised corrosion protection |
