Steel Post Insert
Hot dip galvanised surface mount post inserts for steel posts 90mm

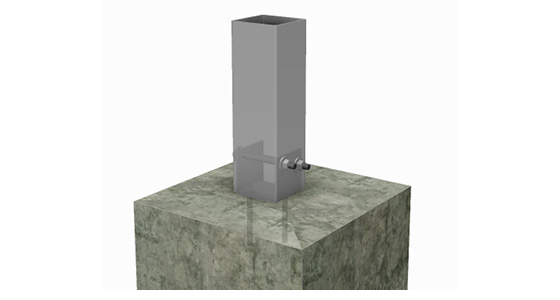

Fix two anchors through the base plate to concrete.
Ensure anchor fixing and footing detail are adequate enough to resist the wind load upward and dead plus live load downward.
Insert steel post into Steel Post Insert.
Fix steel post to Steel Post Insert with 1/M10 bolt.
External
Internal
Fitted with Colonial Slider
Fitted with Colonial Slider
Product Specification |
|
|---|---|
90mm Steel Post Insert - Top Hat - Hot Dipped Galvanised | BPASP90G |
90mm Steel Post Insert - U Type - Hot Dipped Galvanised | BPAC75 |
Material Specification |
|
|---|---|
Thickness: | 3.0mm |
Material: | Hot dipped galvanised corrosion protection |
Colonial Slider |
|
|---|---|
90mm Colonial Slider x 85mm Height: | BPACOL90S |
