Triple Loks
Australian made galvabond fixings providing onto three separate surfaces for maximum strength jointing
Triple Grips are typically used for the following applications:

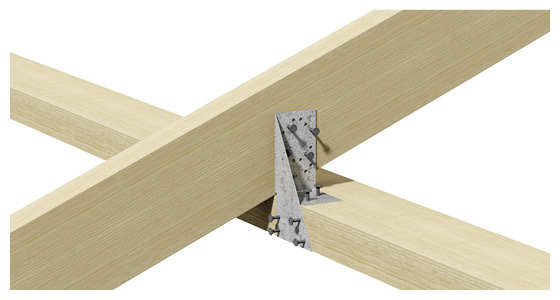

Connecting of Rafters to Wall Plate

Jack flyovers to truncated truss

Connecting of Roof Trusses to Wall Plated

Connect Joist to Bearer

A minimum of 10/30mm x 2.8Ø Dunnings’ nails must be used to fix each Triple Grip for full tabulated values.
Specification | Product Code |
---|---|
Left Hand - 1mm - Galvanised | BTRL1L |
Right Hand - 1mm - Galvanised | BTRL1R |
Thickness: | 1.0mm |
Material: | G300-Z275 |
BN 30 x 2.8mm Galvanised Timber Connector nails |
