Timber Loks
Australian made galvabond timber connectors flat and bent big and small for all general fixing purposes
- Applications - Option A
- Applications - Option B
- Fixing
- Product Specification
- Material Specification
- Nails

Jack flyovers to truncated truss

Studs to bottom plates

Wall is perpendicular to truss

Truss to top plate

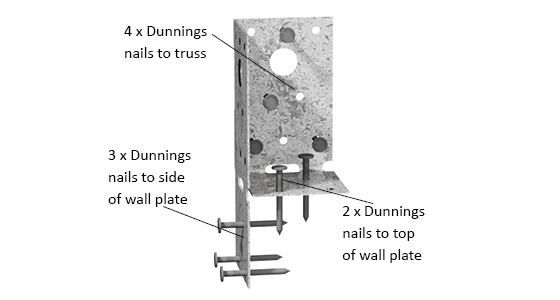

Timber Loks should be secured with at least 9/30mm x 2.8Ø Dunnings nails.
You can bend the bottom legs to suit a variety of applications as shown in Option A

Specification | Product Code |
---|---|
Type 3 - 1mm - (T) x 110mm (L) - Galvanised | BTL3 |
Type 4 - 1mm (T) x 110mm (L) - Galvanised | BTL4 |


Thickness: | 1.0mm |
Material: | G300-Z275 |
BN 30 x 2.8mm Galvanised Timber Connector nails |
