Heavy Duty Angles 5-6mm
Hot dip galvanised range of metal brackets providing a general purpose heavy duty angle connecting solution

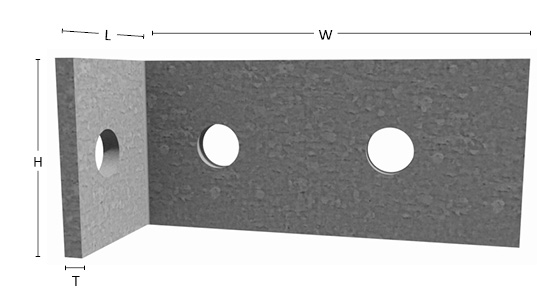

Formed angle designed as a template to provide high capacity right angle joins.
Heavy duty angles are fixed with M10 or M12 bolts.
Specification | Product Code |
|---|---|
40 x 40 x 40 x 5mm - M10 Holes - Hot Dipped Galvanised | BAH135G |
40 x 40 x 40 x 5mm - M12 Holes - Hot Dipped Galvanised | BAH15G |
50 x 50 x50 x 5mm - M12 Holes - Hot Dipped Galvanised | BAH25G |
65 x 65 x 65 x 5mm - M12 Holes - Hot Dipped Galvanised | BAH35G |
90 x 90 x 75 x 6mm - M12 Holes - Hot Dipped Galvanised | BAH46G |
40 x 80 x 40 x 5mm - M12 Holes - Hot Dipped Galvanised | BAH55G |
50 x 100 x 50 x 5mm - M12 Holes - Hot Dipped Galvanised | BAH65G |
65 x 130 x 65 x 5mm - M12 Holes - Hot Dipped Galvanised | BAH75G |
90 x 150 x 75 x 6mm - M12 Holes - Hot Dipped Galvanised | BAH86G |
80 x 80 x 40 x 5mm - M12 Holes - Hot Dipped Galvanised | BAH95G |
100 x 100 x 50 x 5mm - M12 Holes - Hot Dipped Galvanised | BAH105G |
130 x 130 x 65 x 5mm - M12 Holes - Hot Dipped Galvanised | BAH115G |
150 x 150 x 75 x 6mm - M12 Holes - Hot Dipped Galvanised | BAH126G |
Thickness: | 5.0mm - 6.0mm |
Material: | Hot dipped galvanised corrosion protection |
