Girder
Heavy duty Australian made joist brackets which are split to allow for non standard sizes or fixings or where a little extra strength is required
The Girder Brackets allow you flexibility in fastening to the truss or beam using nails.
Split Hangers are easy to install. Simply use 30mm x 2.8Ø Dunnings galvanised nails, through each wing to secure the Split Hanger to the supporting member.
Note: 2 Split hangers to be used always in pairs. Minimum 1 each side of supported member.
Girder Brackets secured to a beam using Dunnings galvanised nails

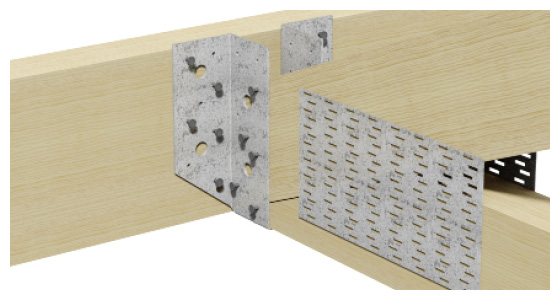

Girder Brackets secured to single girder truss using Dunnings galvanised nails
Girder Brackets secured to a beam using Dunnings galvanised nails
Specification | Product Code |
|---|---|
150 x 50 x 50 x 2mm Left Hand Galvanised | BGB150LH |
150 x 50 x 50 x 2mm Right Hand Galvanised | BGB150RH |
200 x 50 x 50 x 2mm Left Hand Galvanised | BGB200LH |
200 x 50 x 50 x 2mm Right Hand Galvanised | BGB200RH |
Thickness: | 2.0mm |
Material: | G300-Z275 |
BN 30 x 2.8mm Galvanised Timber Connector nails |
