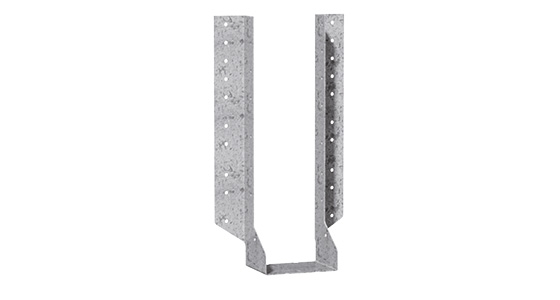

I Beam Face Fix Hanger

Designed for residential and normal load I-joist applications, the Dunnings I-Beam hanger allows flexibility in fastening by using nails. A screw secure fixing into the joist bottom flange holds the joist in position and prevents timber joist squeaking.


Dunnings I Beam Hanger secured full height of I-Joist to beam/bearer using Dunnings galvanised nails.

The I Beam Hanger is easy to install. Simply use minimum 8/40mm x 3.75Ø Dunnings galvanised nails, 4 nails through each wing, to secure the I Beam Hanger to the supporting member. Use minimum 30mm-No.6 Type 17 bugle head screw through bottom hole to hold joist in position.


Specification

Product Code

238.5 x 42 x 1.2mm Galvanised - 250 EA Nails 40 X 3.75mm + 25 Screws;

BIH238X42

299 x 42 x 1.2mm Galvanised - 300 EA Nails 40 X 3.75mm + 25 Screws

BIH299X42

190 x 45 x 1.2mm Galvanised - 200 EA Nails 40 X 3.75mm + 25 Screws

BIH190X45

237 x 45 x 1.2mm Galvanised - 250 EA Nails 40 X 3.75mm + 25 Screws

BIH237X45

297.5 x 45 x 1.2mm Galvanised - 300 EA Nails 40 X 3.75mm + 25 Screws

BIH297X45

355 x 45 x 1.2mm Galvanised - 350 EA Nails 40 X 3.75mm + 25 Screws

BIH355X45

233 x 53 x 1.2mm Galvanised - 250 EA Nails 40 X 3.75mm + 25 Screws

BIH233X53

293.5 x 53 x 1.2mm Galvanised - 300 EA Nails 40 X 3.75mm + 25 Screws

BIH293X53

351 x 53 x 1.2mm Galvanised - 350 EA Nails 40 X 3.75mm + 25 Screws

BIH351X53

347.5 x 60 x 1.2mm Galvanised - 350 EA Nails 40 X 3.75mm + 25 Screws

BIH347X60

187 x 65 x 1.2mm Galvanised - 200 EA Nails 40 X 3.75mm + 25 Screws

BIH180X65

235.5 x 65 x 1.2mm Galvanised - 250 EA Nails 40 X 3.75mm + 25 Screws

BIH235X65

287.5 x 65 x 1.2mm Galvanised - 300 EA Nails 40 X 3.75mm + 25 Screws

BIH287X65

345 x 65 x 1.2mm Galvanised - 350 EA Nails 40 X 3.75mm + 25 Screws

BIH345X65

233 x 70 x 1.2mm Galvanised - 250 EA Nails 40 X 3.75mm + 25 Screws

BIH233X70

285 x 70 x 1.2mm Galvanised - 300 EA Nails 40 X 3.75mm + 25 Screws

BIH285X70

352.5 x 70 x 1.2mm Galvanised - 350 EA Nails 40 X 3.75mm + 25 Screws

BIH352X70

400 x 70 x 1.2mm Galvanised - 350 EA Nails 40 X 3.75mm + 25 Screws

BIH400X70

235 x 90 x 1.2mm Galvanised - 250 EA Nails 40 X 3.75mm + 25 Screws

BIH235X90

290 x 90 x 1.2mm Galvanised - 300 EA Nails 40 X 3.75mm + 25 Screws

BIH290X90

342.5 x 90 x 1.2mm Galvanised - 350 EA Nails 40 X 3.75mm + 25 Screws

BIH342X90

390 x 90 x 1.2mm Galvanised - 350 EA Nails 40 X 3.75mm + 25 Screws

BIH390X90

Thickness:

1.2mm

Material:

G300-Z275

Supplied with product
